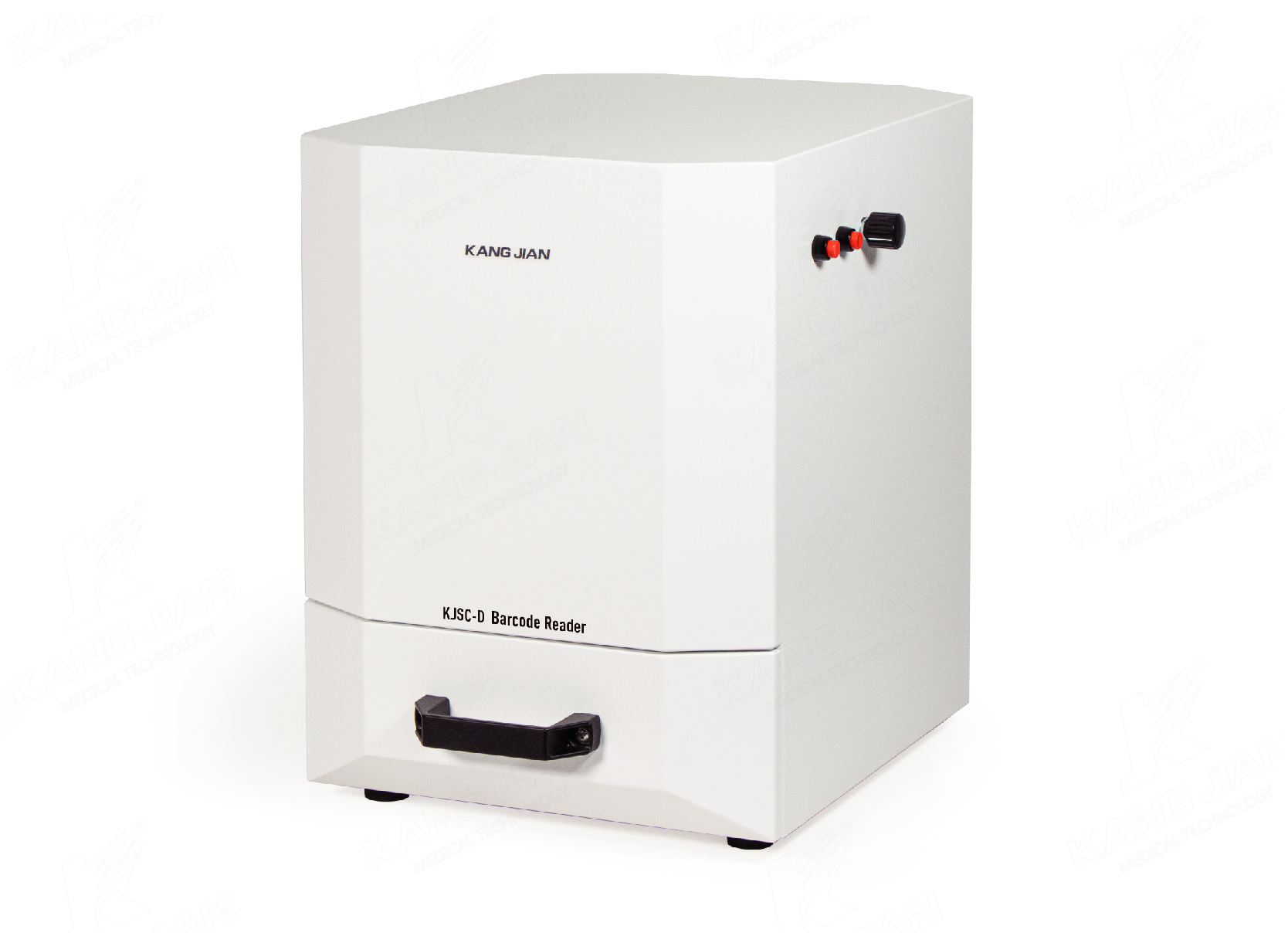

KJSC-D Barcode Reader

Model: Barcode Reader

Brand: KANGJIAN

Numbering: KJSC-D

Product Overview

◎ Wide application range, suitable for recognizing 2D Barcodes on the tops of various test tubes.

◎ High recognition efficiency, with a full box recognition time of less than 2 seconds.

◎ Outstanding recognition performance, capable of easily recognizing blurry QR codes.

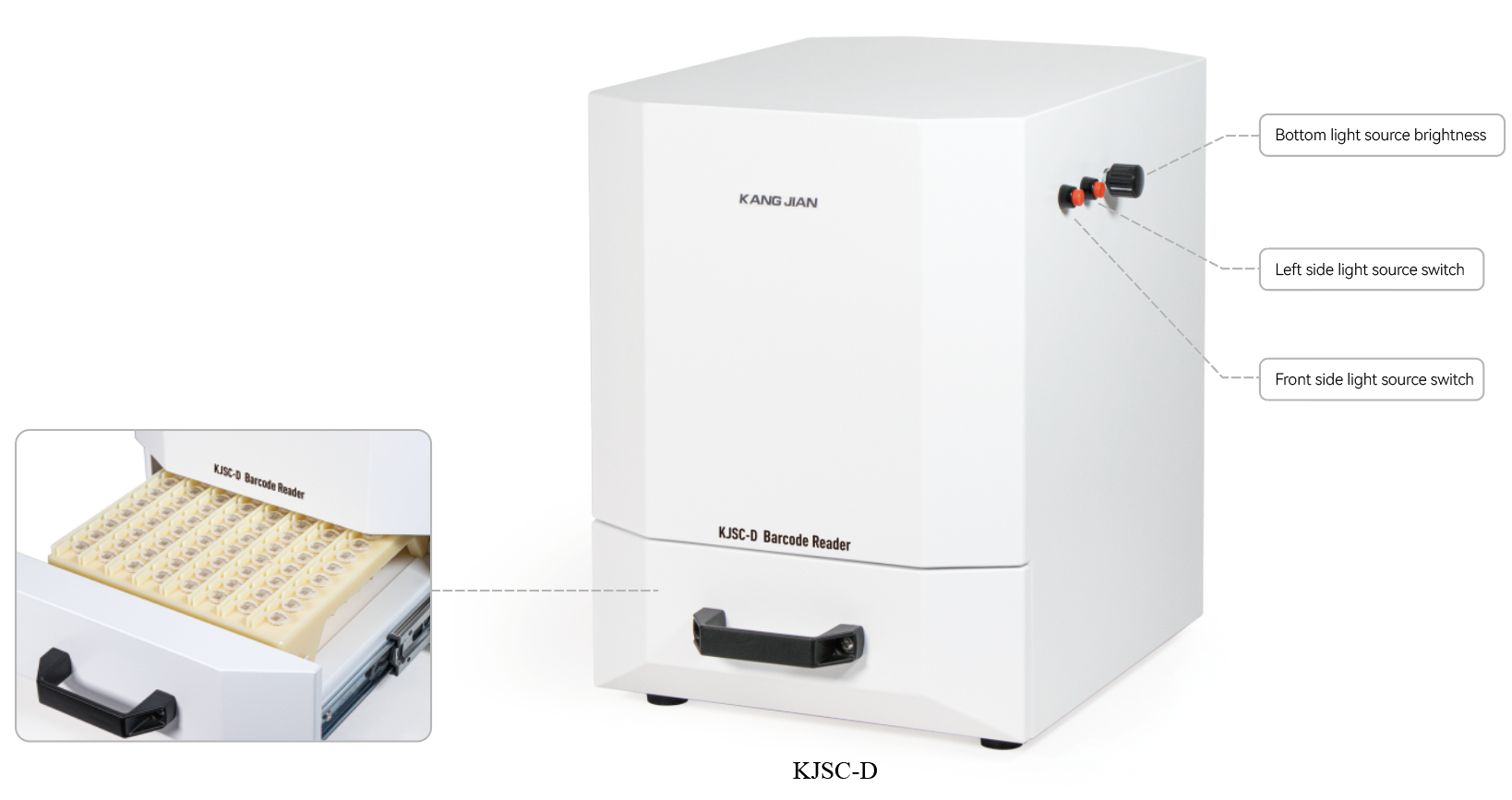

◎ High-position camera viewing structure, effectively reducing recognition errors after test tubes frost.

◎ Compact body structure, suitable for various application scenarios.

◎ High-speed USB 3.0 interface for data transmission, avoiding data reception delays.

◎ Allows operating environment temperature as low as -20°C, ensuring sample quality during recognition.

◎ ser-friendly software settings, with markers for missing, duplicated, or failed code readings.

◎ TCP/IP software interface, convenient for integration with various system software.


Specifications
Reading Rate:<2 seconds
Framing Mode:Industrial camera
Resolution:20 MP
Applicable Specifications:Tubes with 2D Barcodes on the top
Interface Type:USB 3.0
Data Storage Type:Formats such as JPG, TXT, EXCEL, CSV etc.
Supported QR code Types:Data Matrix ECC200, GS1 Aztec Code, GS1 DataMatrix, GS1 QR Code, Micro QR Code, PDF417, QR Code, etc.
Dimensions: 385×295×390 mm
Weight:6.5Kg
