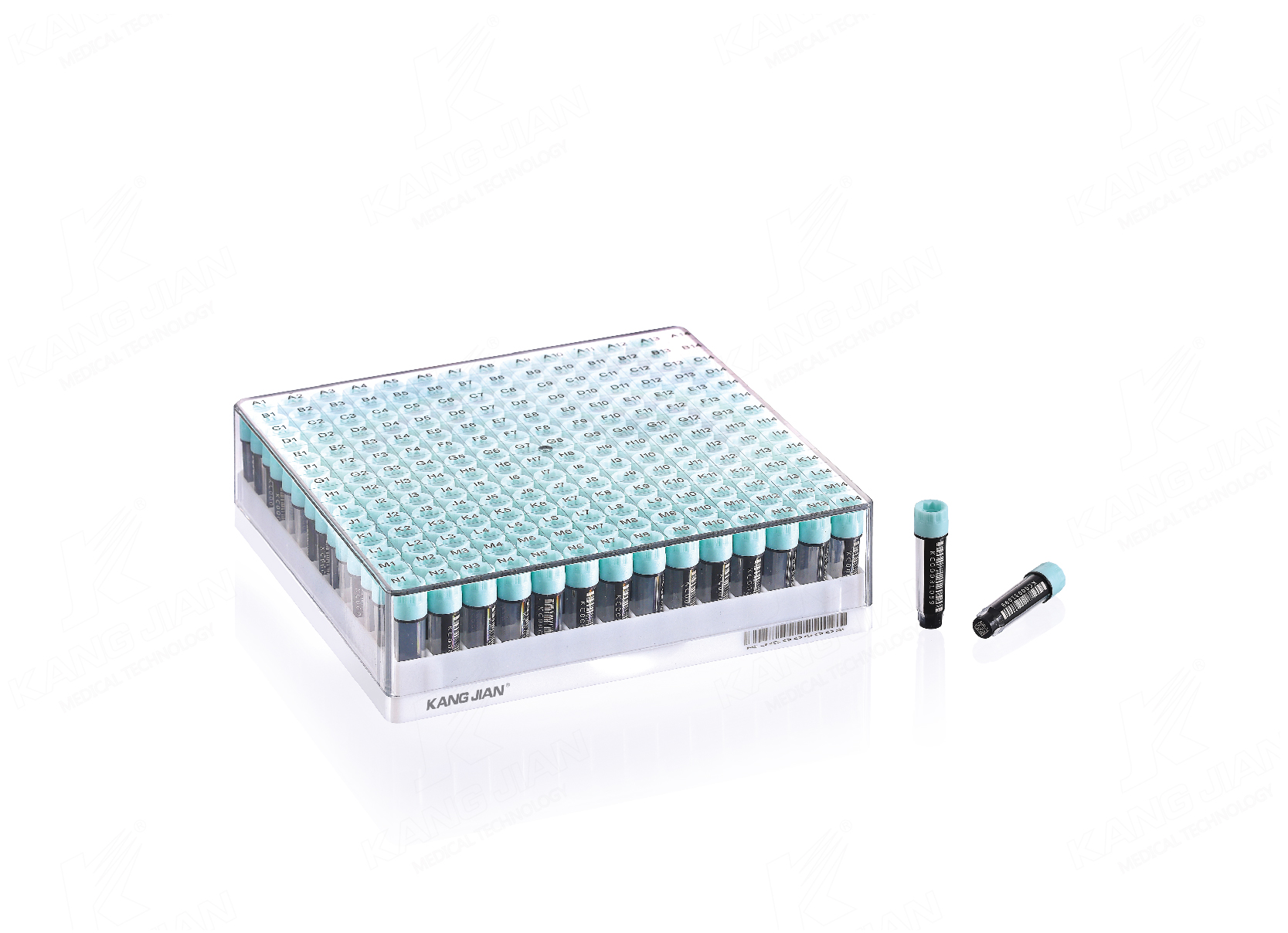

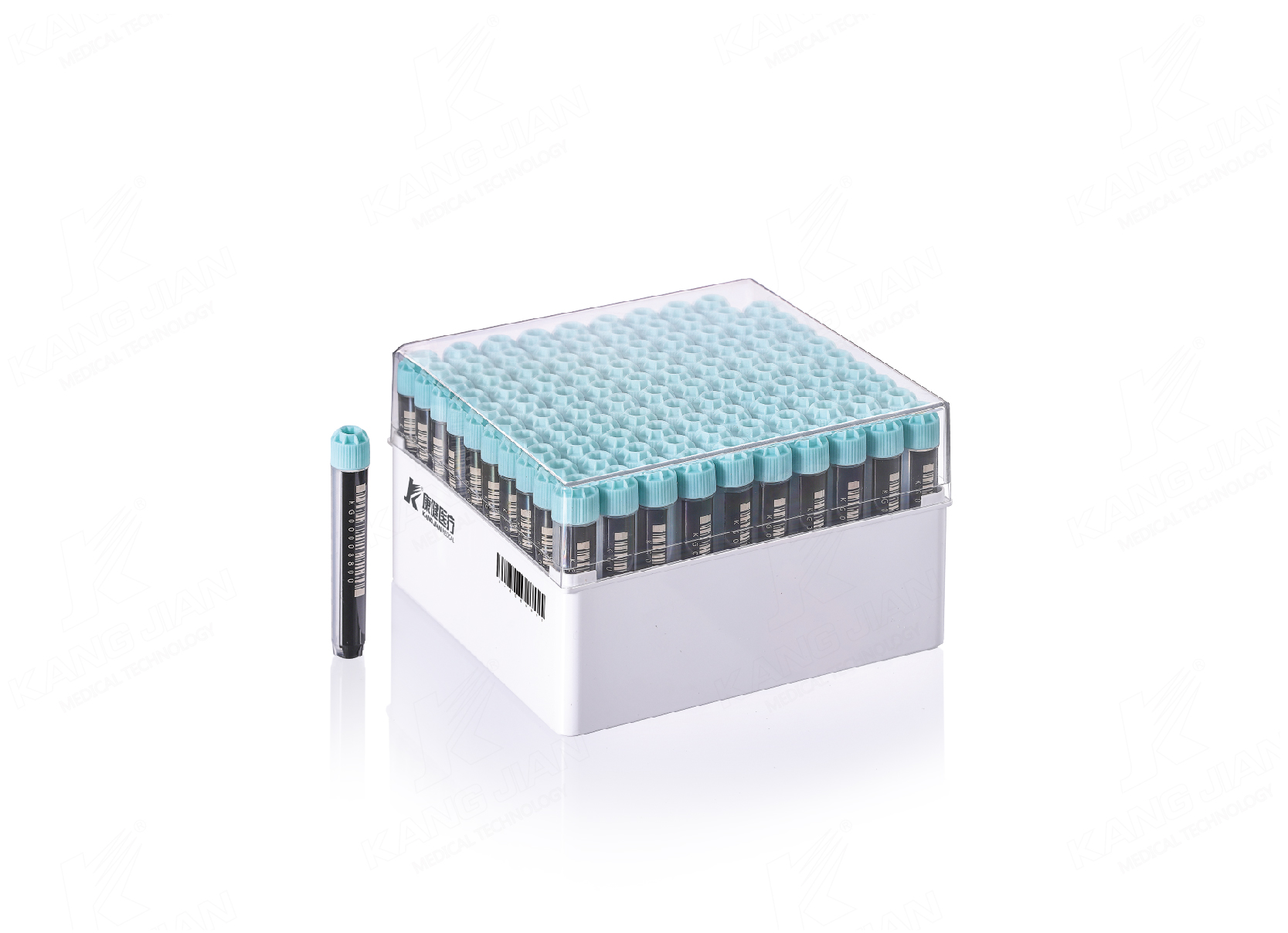

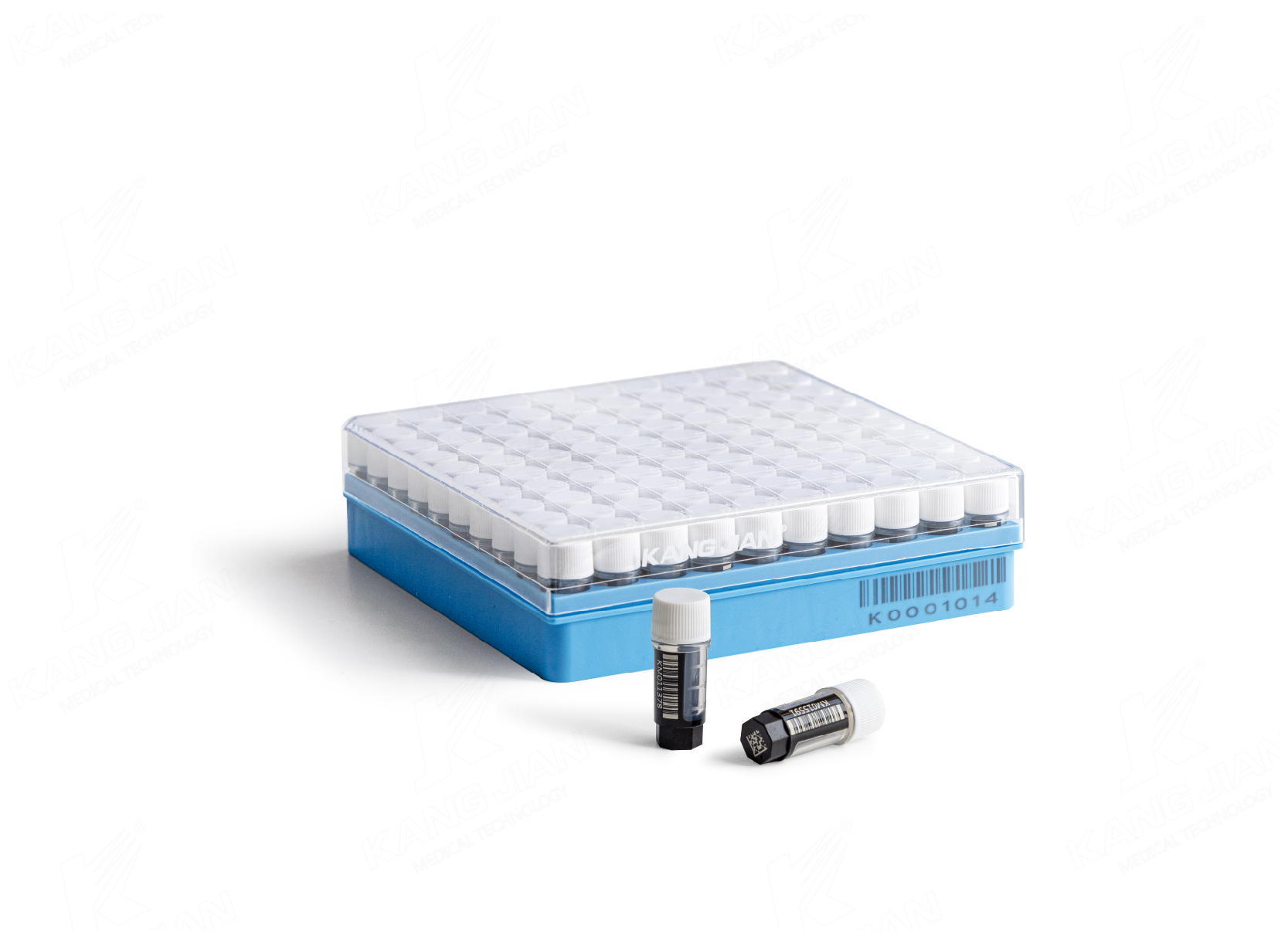

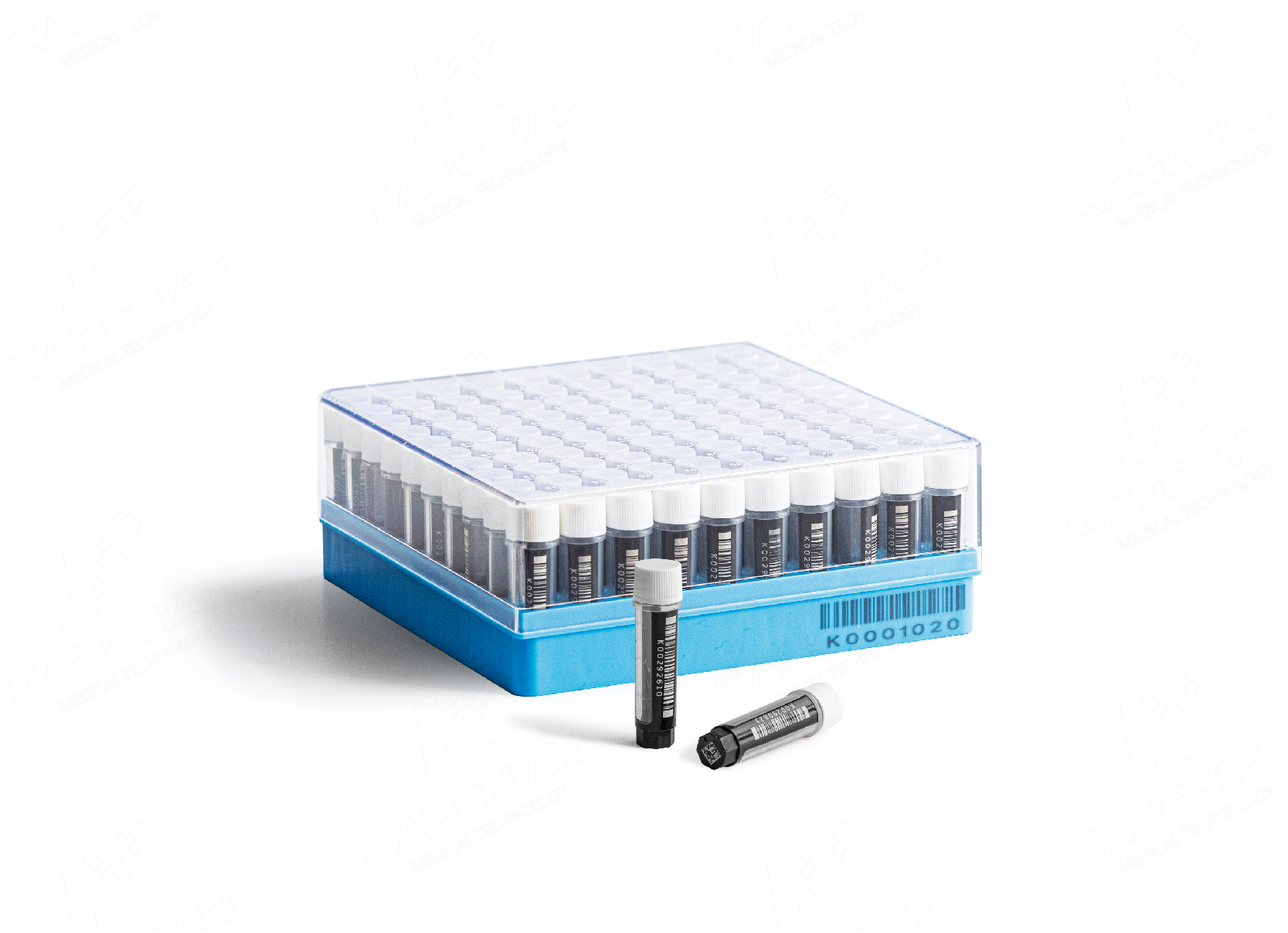

Multi-coded cryostorage vial

Model: 0.5ml

Brand: KANGJIAN

Numbering: KJ340-1/KJ340-3

Material:

Tube:PP+PP Double-shot injection

Box: Box cover: PC  Base frame: PP


Product Overview

 With the rapid development on the modern biotechnology, many biobanks are launched in the university labs, hospital sample library and research/testing center. To guarantee the safe, ordered and digitized management for the biobank, with purpose of preventing mistake by manual marking on the tubes and improving efficiency, cryovials with 2D barcode are your most ideal choice.

◆ Made of pure polypropylene raw material in accordance with USP Class VI, produced in GMP Class 100,000 clean workshop. No burst, no leakage, good sealing when stored in ultra-hypothermia liquid nitrogen (-196˚C).

◆ The tube bottom is upgraded to a double-shot molding process.

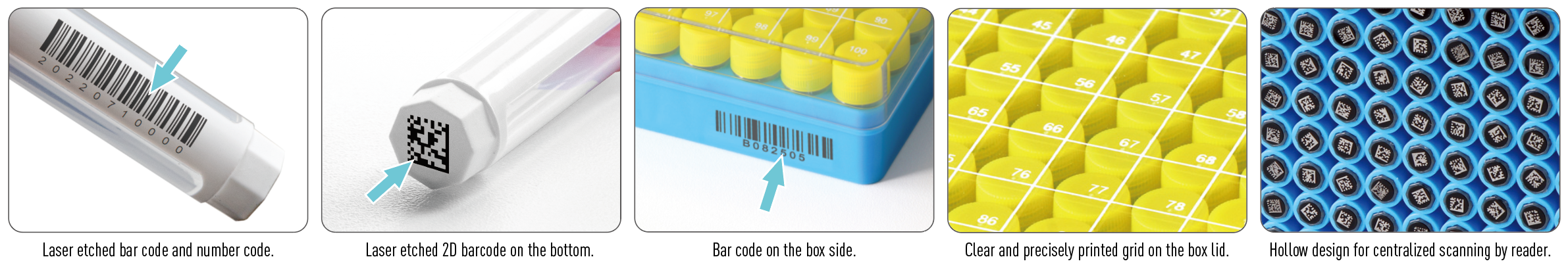

◆ Multi code integrated in one: 2D barcode on the tube bottom + bar code on writing area + Number code. Each tube has its unique identifying information. Laser etched 2D barcode and bar code, no fading, no peeling, good stability.

◆ Clear black printed graduation, large white writing area on the tube, with multi-color optional cap colors.

◆ Hollow design for the bottom of the cryogenic box, especially used in centralized scanning of the 2D barcode on the tube bottom by the bench top 2D barcode reader. The unique bar code on the box side can carry out convenient classified-querying and centralized management.

◆ DNA/RNA free, Non-pyrogenic, no endotoxin, no cytotoxicity. Irradiation sterilization is available.


Specifications

REF.Material

Outer

dimension

Volume

capacity

Temperature

range

Qty in bagQty in boxQty in case

Detailed

information

Original REF.
KJ340-1

Tube:PP+PP

Double-shot

injection


Box:

Box cover: PC

Base frame: PP

Ø12.3×31.3mm

0.5ml-196~+121°C

25(PCS/Bag)

5001000

STERILE R

Suggested to be stored only in the gas phase of liquid nitrogen

104-0501

KJ340-3

133×133×36mm0.5ml-196~+121°C100(PCS/Storage box)6002000104-0502

Warning: The cryovials are suggested to be stored only in the gas phase above the liquefied surface (i.e., in the gas state of the liquid nitrogen). Do not immerse the cryovials directly into the liquid below the liquefied surface (e.g., in the liquid nitrogen) for preservation, to prevent accidents caused by rapid expansion of the gas pressure inside the tubes.
