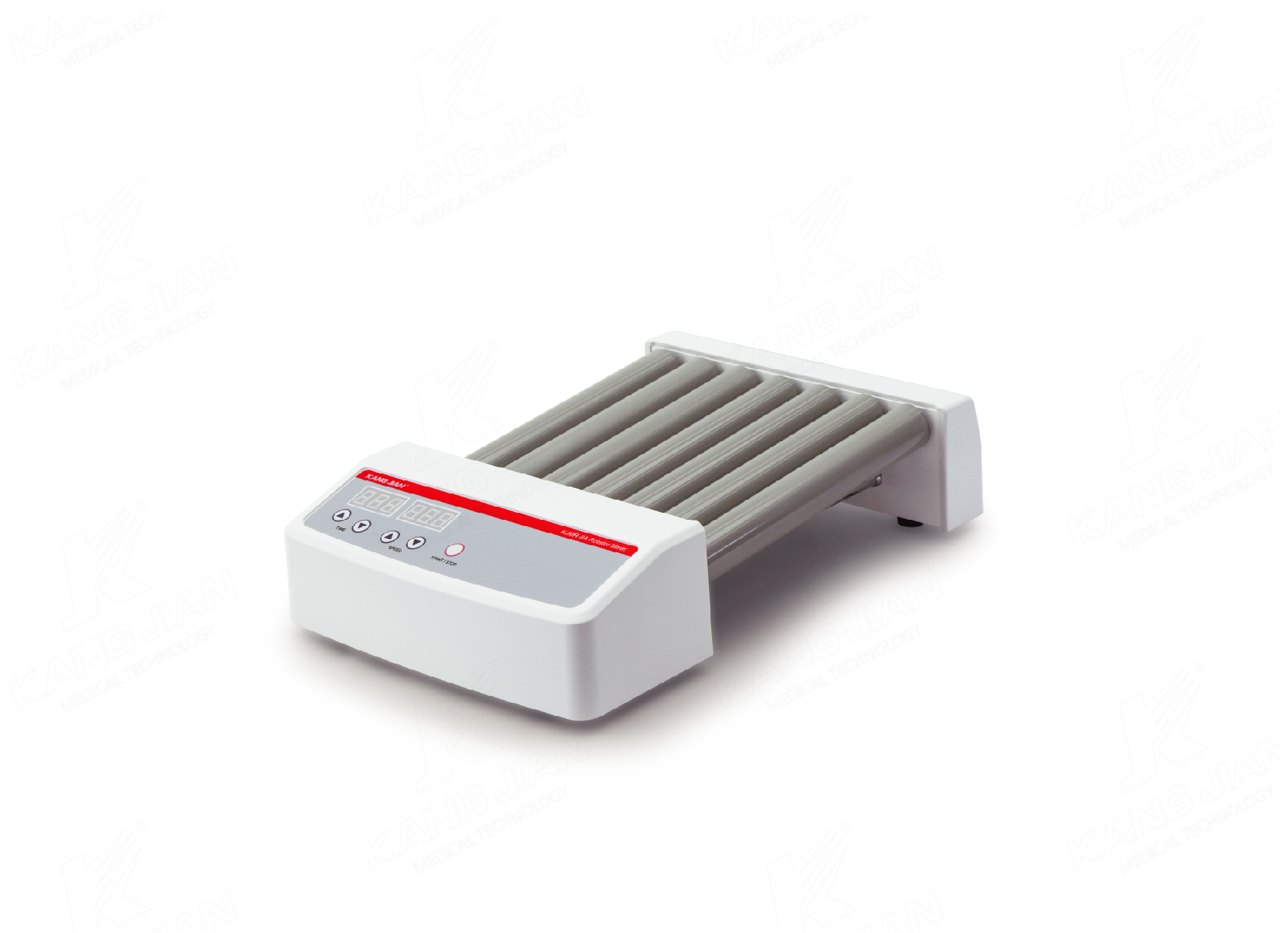

KJMR-IIA Roller Mixer
Product Overview
◎ It can carry out two functions (Roll and Swing), adapted to mixing of blood samples, adhesive materials and Liquid - solid suspensions.
◎ Driven by High performance DC declaration Motor, Running stable, No noise, Long lifetime.
◎ 7 rolls, compact structure makes it less space occupation, suitable for various applications.
◎ Reasonable space between the rolls makes it fit for different size tubes.
◎ According to actual requirements, We can customize the bidirectional Cross Rolling Mode. The roller can be extended within a certain range to fit for more tubes.
Specifications
| Operation method: | Roll+swing |
| Swing angle: | 22mm±1mm |
| Rating speed: | 20-80rpm |
| Max. Loading weight: | 1.5Kg |
| Running mode: | Continous |
| Input voltage (frequency): | AC100-240V (50/60Hz) |
| Permissible relative moisture: | 80% |
| Output power: | 10W |
| Roll length: | Standard 240mm (customizable 270/340mm) |
| Protective class: | IP21 |
| Permissible ambient temperature: | 5-50°C |
| Dimensions: | 410×270×100mm |
| Net. Weight: | 4.5Kg |
