KJ-201BXA Orbital Shaker

Model: Orbital Shaker

Brand: KANGJIAN

Numbering: KJ-201BXA

Product Overview

Specially designed for the detection of non-specific antibodies in syphilis, specifically for VDRL, RPR, and TRUST experiments. It meets the WS/T491 health industry standards and uses a high-efficiency DC motor for driving. The structure is compact and reasonable, offering smooth, quiet operation with no noise.

◎ Digital control for time and speed, ensuring precise control.

◎ LED digital display for speed and time, making it easy to read and operate.

◎ Wide voltage design effectively prevents interference from unstable power supply.

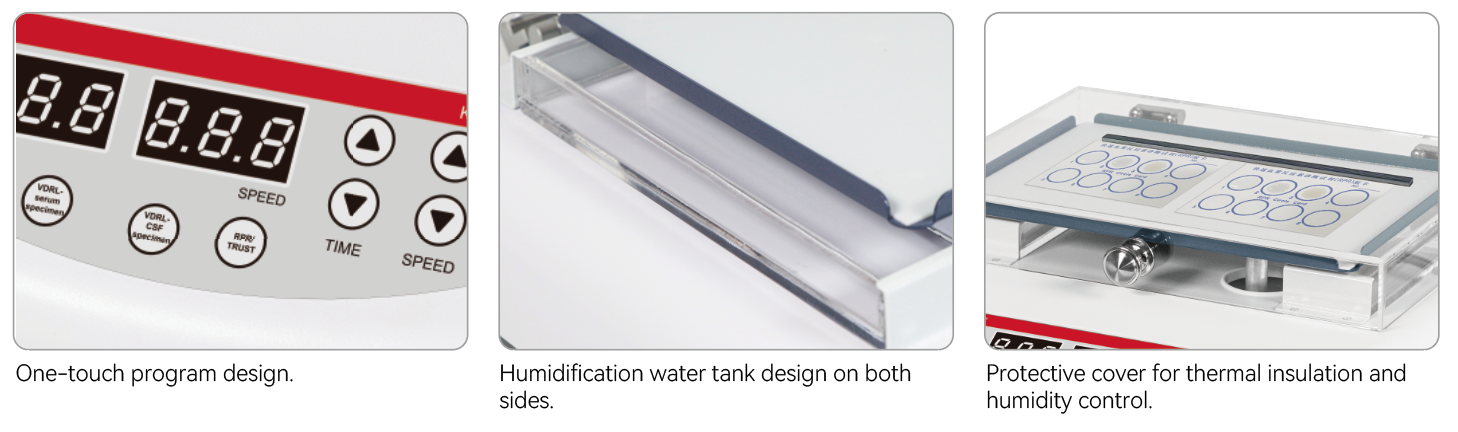

◎ Transparent cover and humidification water tank design reduce the impact of external temperature and humidity on the samples.

◎ One-touch reaction program key design, allowing direct access to the required experimental parameters.

◎ Built-in anti-slip silicone mat and magnetic pressure plate in the tray, making it easy to use and preventing deformation or sliding of reaction plates during shaking.


Specifications
Operation method:Circling
Eccentric diameter:19±1mm
Max. Loading weight:1Kg
Working plate size:245×167mm
Rating speed:20-230rpm
Speed error±2rpm
Running mode:Timing / Continuous
Timing range:0-999min
Timing error±1s/min
Input voltage(frequency):AC100-240V(50/60Hz)
Permissible relative moisture:80%
Input power:10W
Permissible ambient temperature:5-50°C
Dimensions:335×320×145mm
Net. Weight:4.6Kg
