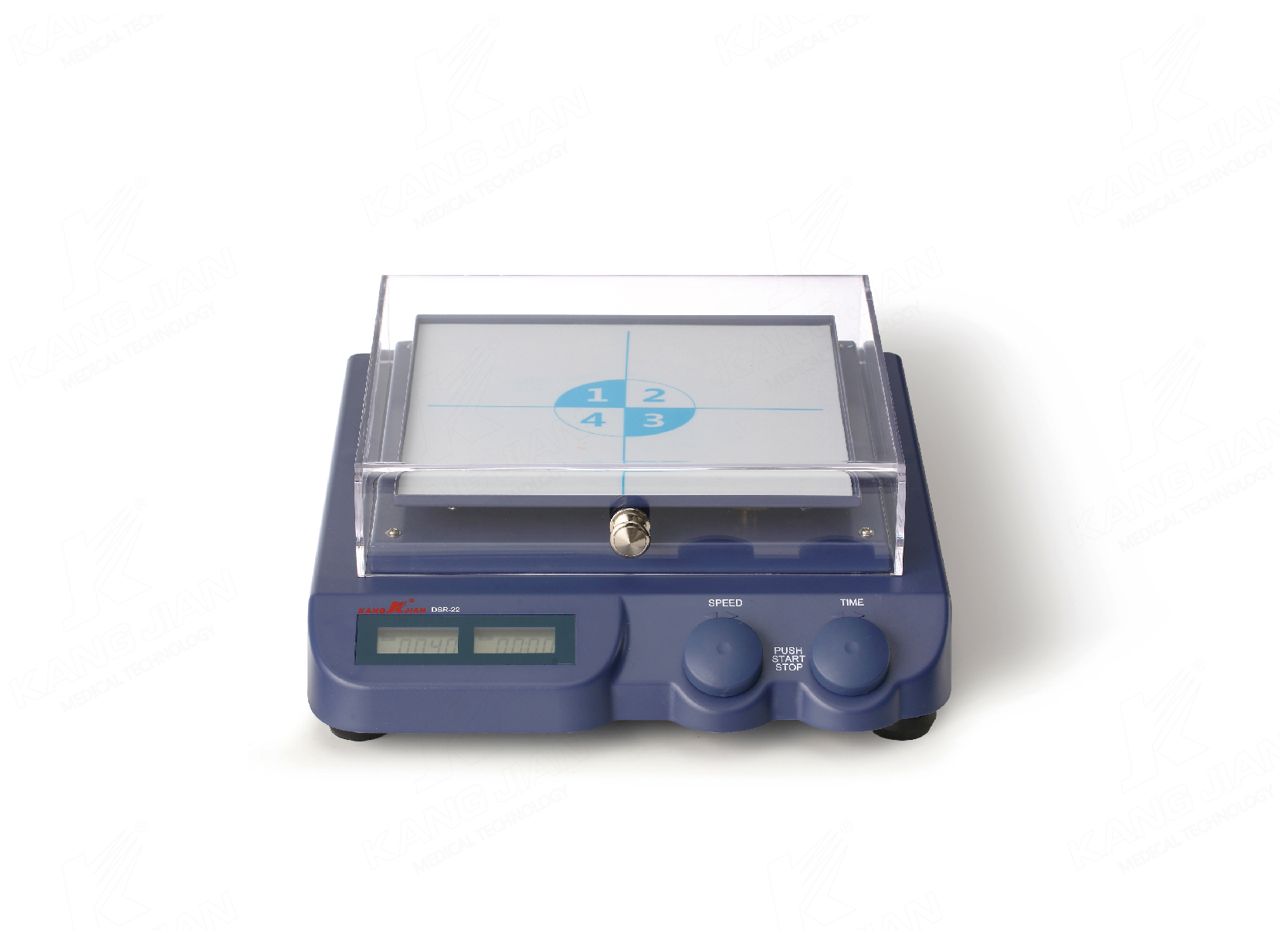

DSR-22 Digital Orbital Shaker
Model: Digital Orbital Shaker
Brand: KANGJIAN
Numbering: DSR-22
Product Overview
◎ DSR-22 is the upgraded version of the traditional orbital shaker, used for screening and testing of syphilis RPR, TRUST, VDRL, among other applications. It can be also widely used in mixing for various kinds of flat type labwares, such as: petri dish, culture plate, etc.
◎ Equipped with Brushless motor, it can run smoothly and quietly, thus guarantee a long service life.
◎ LCD with backlight can display the current speed, time and operation mode, convenient for readingand setting.
◎ Precise digital time and speed setting can easily carry out the continuous operation mode.
◎ Safe operation protection function adopted.
◎ Wide voltage design avoids the impact of unstable voltage on the equipment.
Specifications
| Operation method: | Circling |
| Circling diameter: | 19mm / 22mm |
| Max. Loading weight: | 2kg |
| Speed range: | 40-350rpm |
| Timing range: | 0-99h59min |
| Running mode: | Timing / Continuous |
| Input voltage(frequency): | AC100-240V (50/60Hz) |
| Input power: | 20W |
| Working plate size: | Common type: 315×315mm |
| With cover: 255×255mm | |
| Protective class: | IP21 |
| Permissible ambient temperature: | 5-50°C |
| Permissible relative moisture: | 80% |
| Dimensions: | Common type: 420×360×125mm |
| With cover: 420×360×145mm | |
| Net. Weight: | Common type: 7.0kg |
| With cover: 7.8kg |
